Server Configuration

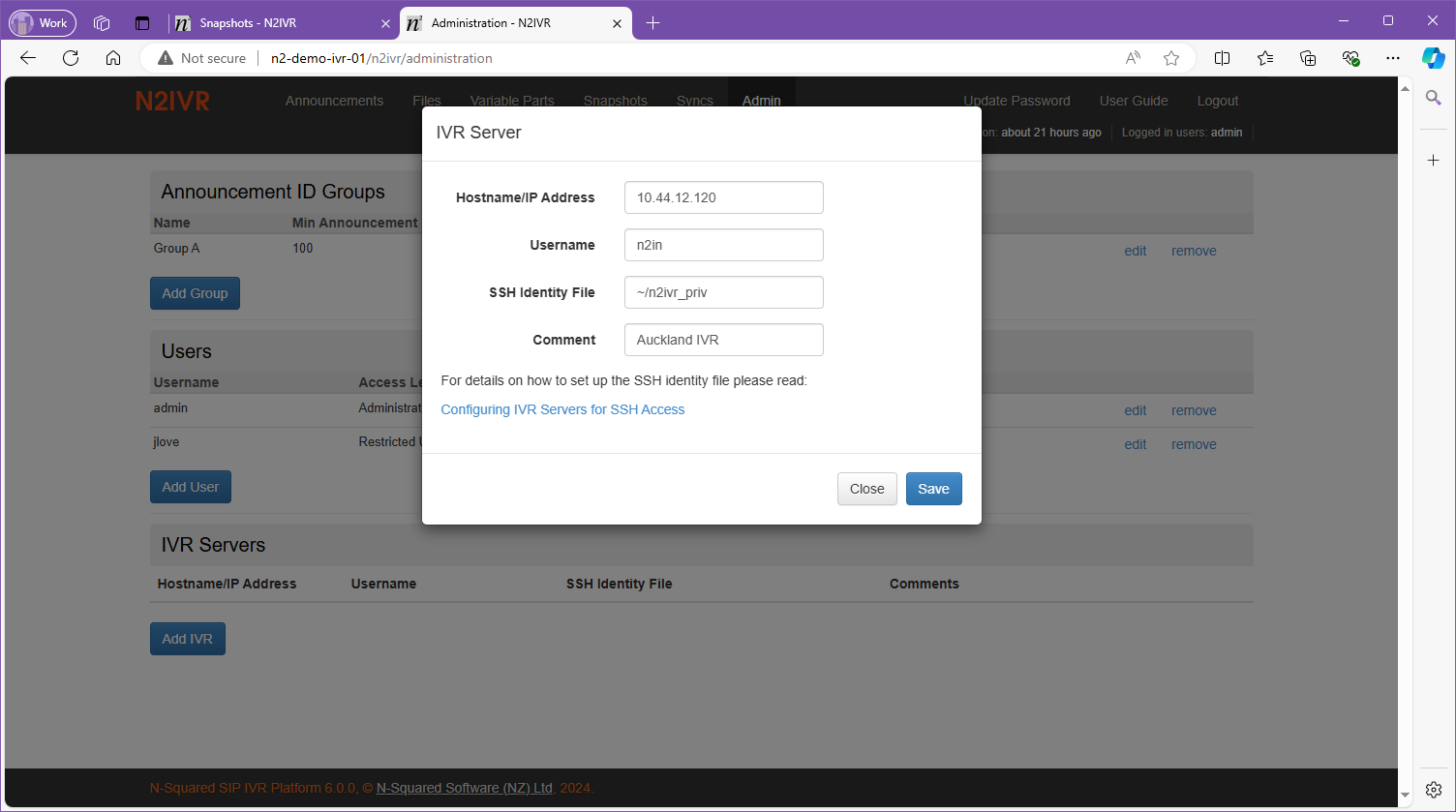

Each server to which the IVR must synchronize its working directory is configured in the IVR GUI through the Admin page. To configure the existence of a service node, add the necessary information to the Administration screen:

When configuring the IVR service node, the following fields need to be configured:

Field	Description
Hostname/IP Address	The hostname or IP address of the server.
Username	The user to connect to the server with using SSH. This should usually be `n2in`.
SSH Identify File	If a unique SSH private key file is to be used for this connection, the full path to this file is required. If this file is not provided, the web-server user on the primary IVR is expected to be able to ssh to the host defined as the user given and log in without a password. This would usually require the private key to be the web-server user’s default one (i.e. `~/.ssh/id_rsa`).
Comment	An optional comment describing the server.

Prior to configuring a IVR Server in the GUI, the passwordless SSH login to the IVR server must be configured. This is done using a private/public SSH key pair, accessible to the UNIX user who executes the IVR management interface user interface (under Linux this will be www-data or httpd, depending on the target platform).

To configure the login for a IVR server, follow these steps:

Log in to the primary IVR.
As a root user, or a user with sudo access, set up the directory where the private key is to be stored, e.g:

sudo mkdir -p /var/lib/n2ivr/etc
cd /var/lib/n2ivr/etc
chmod 700 /var/lib/n2ivr/etc

Run the following command to create the public and private key:

sudo ssh-keygen -t rsa

The following example interaction shows the creation. Note that when asking for a passphrase, press enter to give an empty passphrase:

# ssh-keygen -t rsa
Generating public/private rsa key pair.
Enter file in which to save the key (//.ssh/id_rsa): /var/lib/n2ivr/etc/ivr_id_rsa
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /var/lib/n2ivr/etc/ivr_id_rsa.
Your public key has been saved in /var/lib/n2ivr/etc/ivr_id_rsa.pub.
The key fingerprint is:
c7:39:82:41:ba:2d:3a:53:f8:38:48:e7:7d:64:02:2e root@n2ivr-pri

Update ownership of the file, ensuring it is available to the web server account only:

chown -R www-data:www-data /var/lib/n2ivr/etc

Copy the public key file to the remote server, to the n2in account:

scp /var/lib/n2ivr/etc/ivr_id_rsa.pub n2in@ivr-server:

ssh n2in@ivr-server
mkdir .-p ssh
chmod 700 .ssh

Add the new key to the authorized_keys file. Note that you may need to edit the authorized key string to adjust the host and/or user the authorized key is for.

cat ivr_id_rsa.pub >> .ssh/authorized_keys
chmod 600 .ssh/authorized_keys
chown -R n2in:daemon .ssh
rm ivr_id_rsa.pub

Return to the server hosting the IVR GUI, and test login to the remote server:

su www-data -s `which bash`
ssh -i /var/lib/n2ivr/etc/ivr_id_rsa n2in@ivr-server

This may display the following warning:

The authenticity of host 'primaryivr (10.42.2.152)' can't be established.
RSA key fingerprint is 43:e0:5b:fd:5a:cb:02:14:b4:28:ca:6b:2f:90:d0:ee.
Are you sure you want to continue connecting (yes/no)?

If this is displayed, type yes<enter> to continue. There should be no request for any other interaction. In particular, there should be no password request.

If the following error occurs:

Failed to add the host to the list of known hosts (/var/www/.ssh/known_hosts).

Create the directory /var/www/.ssh/ so that the known_hosts file can be created, and ensure that this directory is owned by the user www-data.

In addition, various restrictions may limit the ability for the client to log in. Always:

Ensure that the n2in user is in the ssh daemon configuration for AllowUsers.
Ensure the ssh daemon configuration of PermitEmptyPasswords is set to yes.
Ensure that the user n2in can log in to the server. This can be updated using usermod -s `which bash` n2in as root, on the target server.

You can now configure the IVR server in the administration page. When configuring the IVR server ensure the username is set to the correct username to log in to the remote server, and that the SSH Identify File field is set to the path of the private key file created.

Configuration Errors

If passwordless login via ssh to a server is not configured successfully the GUI will present an error when attempting to save the IVR server record. The IVR attempts to perform a dry-run to log in to the IVR server, and if this fails, will not allow the record to be saved.

This ensures that at the point where the synchronisation is requested, the IVR server login will be successful, and the target directory for audio files exists.
